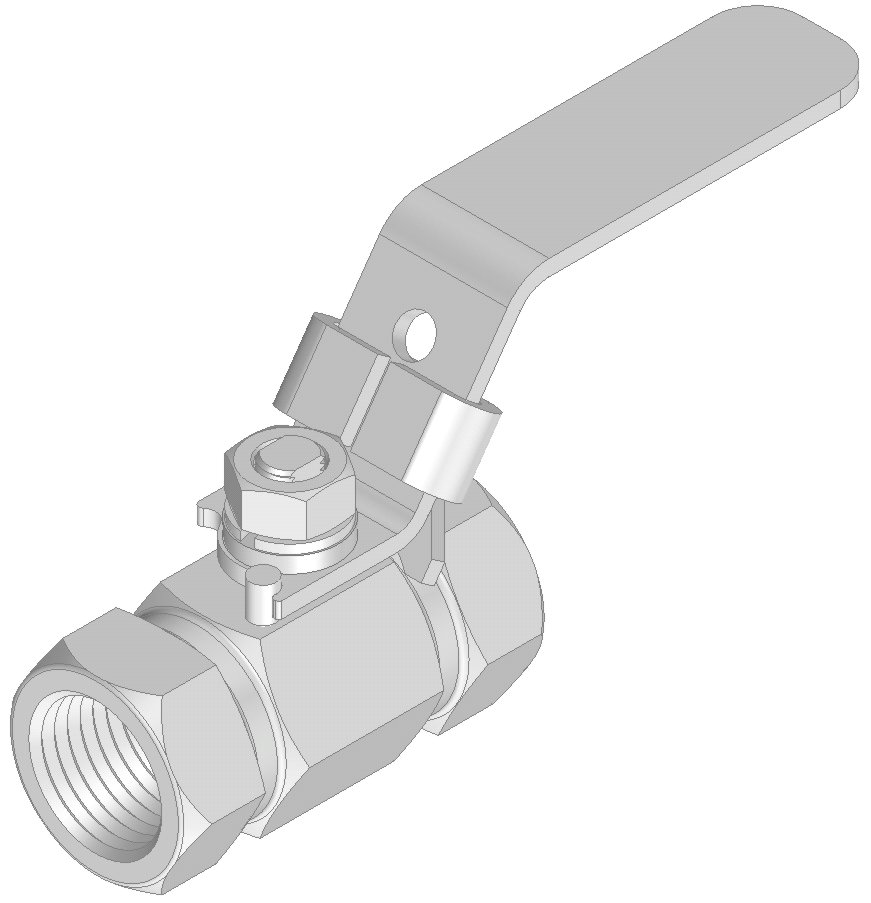

Ball Valves

Back to All Needle Valves / Hand Valves Main Page...




Hand valves are a plug valve design, available in a variety of different shapes, sizes and primarily used for isolation of pressure gauges, switches and pressure transmitters. These high quality items are a can be purchased with various inlet and outlet connections.

Needle Valves are very similar in design, except they are capable of metering flow rates very accurately. This is achieved with large movements being required for small changes in flow.

A pressure bleeding function is incorporated into these valves, via the bleed screw. This makes removal of the device connected to this valve simple as pressure can be relieved prior to removal.




Reduced Bore



High Pressure




Options



Full Bore



Tube / Tube


Decodification

Features

  • Superior Valvehead Technology
  • Long Service Life
  • Metal to metal seat for positive bubble tight shutoff
  • Bonnet to body seal below bonnet threads isolating them from the process media
  • Space saving compact design
  • Accurate flow control at low flow rates for sustained periods for needle valve versions
  • Various Cv Ratings available
  • Equipped with a 5/16” UNF bleed port for bleeding off pressure or easy connection of calibrating equipment
  • Many connection options available. This allows the user great flexibility and reduces amount of external components needed. Possible connections are male thread, female thread, tube end, butt weld and socket weld
  • Tube end design eliminates the requirement for additional compression fittings, thus reducing costs, installation time and potential leak paths
  • Full Traceablilty back to source
  • 100% Pressure tested with nitrogen gas
  • 2 Times over-pressure safety margin
  • Manifold marking to a minimum of MSS-SP-25

Specifications

Type Isolation Needle Valve with Bleed
Packing PTFE
Graphite
M.C.W.P. Pressure 6000 psi / 10 000 psi
Temperature Range -30°C (-22°F) to 215°C (420°F) PTFE
-30°C (-22°F) to 440°C (824°F) Graphite
-57°C (-70°F) to 215°C (420°F) Arctic


Connection Options

Process Connection Instrument Connection
1/4" NPT 1/4" NPT
1/2" NPT 1/2" NPT
3/4" NPT 3/4" NPT
1/4" BSP(G) 1/4" BSP(G)
1/2" BSP(G) 1/2" BSP(G)
3/4" BSP(G) 3/4" BSP(G)







Male - Female
Thread Size A B C D E Weight
1/4 " 53 28 68 22 26 178g
3/8 " 57 29 68 22 26 183g
1/2 " 57 30 71 27 32 236g
3/4 " 64 29 73 32 38  0g
1 " 71 29 78 41 49  0g
G1/4 " 71 29 78 41 49  0g
G3/8 " 71 29 78 41 49  0g
G1/2 " 71 29 78 41 49  0g
Threads are NPT and BSPG, Dimensions in mm
Specifications subject to change without prior notification




Female - Female
Thread Size A B C D E Weight
1/4 " 53 28 68 22 26 208g
3/8 " 57 29 68 22 26 235g
1/2 " 57 30 71 27 32 245g
3/4 " 64 29 73 32 38  0g
1 " 71 29 78 41 49  0g
G1/4 " 71 29 78 41 49  0g
G3/8 " 71 29 78 41 49  0g
G1/2 " 71 29 78 41 49  0g
Threads are NPT and BSPG, Dimensions in mm
Specifications subject to change without prior notification





Female - Male
Thread Size A B C D E Weight
1/4 " 53 28 68 22 26 178g
3/8 " 57 29 68 22 26 183g
1/2 " 57 30 71 27 32 236g
3/4 " 64 29 73 32 38  0g
1 " 71 29 78 41 49  0g
G1/4 " 71 29 78 41 49  0g
G3/8 " 71 29 78 41 49  0g
G1/2 " 71 29 78 41 49  0g
Threads are NPT and BSPG, Dimensions in mm
Specifications subject to change without prior notification




Tube - Tube
Tube Size A B C D E Weight
1/4 " 53 28 68 22 26 165g
3/8 " 57 29 68 22 26 160g
1/2 " 57 30 71 27 32 224g
3/4 " 64 29 73 32 38  0g
1 " 71 29 78 41 49  0g
Threads are NPT and BSPG, Dimensions in mm
Specifications subject to change without prior notification





Butt Weld - Female
Weld Size A B C D E Weight
1/4 " 53 28 68 22 26 0g
3/8 " 57 29 68 22 26 0g
1/2 " 57 30 71 27 32 0g
3/4 " 64 29 73 32 38  0g
1 " 71 29 78 41 49  0g
G1/4 " 71 29 78 41 49  0g
G3/8 " 71 29 78 41 49  0g
G1/2 " 71 29 78 41 49  0g
Threads are NPT and BSPG, Dimensions in mm
Specifications subject to change without prior notification





Decodification
