Condensate Pots / Seal Pots








  The main purpose of condensate pot is to catch and hold condensate and foreign material. This prevents damage to the metering system and/or manifold. The condensate may be drained from the bottom drain port.

Condensate chambers are used as a barrier between the main line and the secondary instruments in the measurement of steam or other vapors which condense to a liquid state insuring compatibility with the secondary instruments. They can also be used to cool down very high temperature liquids.

Seal pots are installed where the line fluid is corrosive or viscous to the extent where it cannot be permitted to contact the secondary instrument. (transmitter or gauge) thereby acting as a liquid barrier between the line fluid and the condensate. Seal pots/Condensate chambers are available in carbon steel to ASTM A 106, Stainless Steel to ASTM A312 and other alloys.

Standard pipe sizes are 1" to 6". Connections are FNPT, socket weld and butt weld.

Features


  • Superior Valvehead Technology
  • Long Service Life
  • Metal to metal seat for bubble tight shutoff
  • Bonnet to body seal below bonnet threads isolating them from the process media
  • Space saving compact design
  • Many connection options available. This allows the user great flexibility and reduces amount of external components needed. Possible connections are male thread, female thread, tube end, butt weld and socket weld
  • Tube end design eliminates the requirement for additional compression fittings, thus reducing costs, installation time and potential leak paths
  • Full Traceablilty back to source
  • 100% Pressure tested with nitrogen gas
  • 2 Times over-pressure safety margin
  • Manifold marking to a minimum of MSS-SP-25

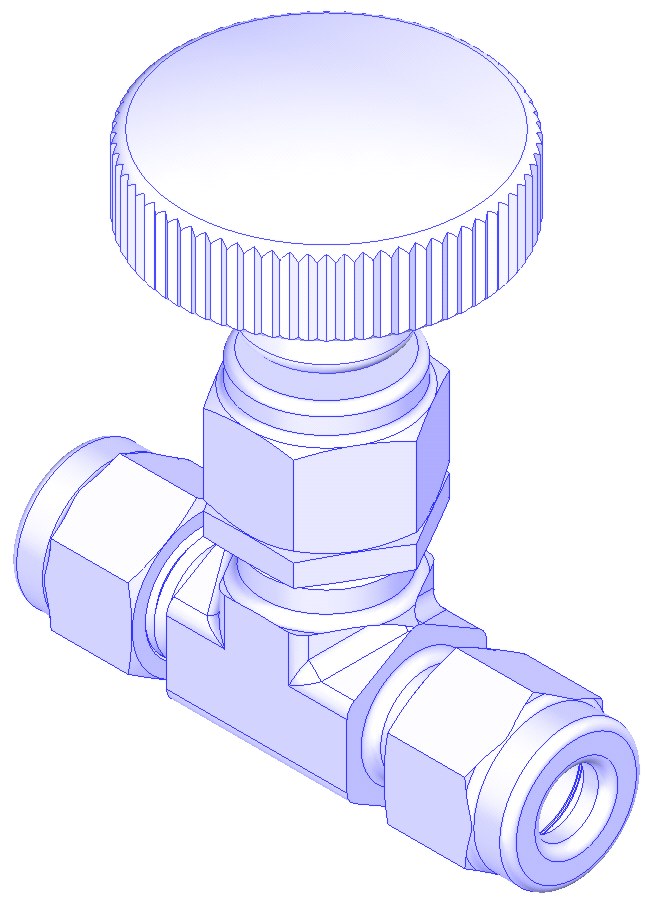

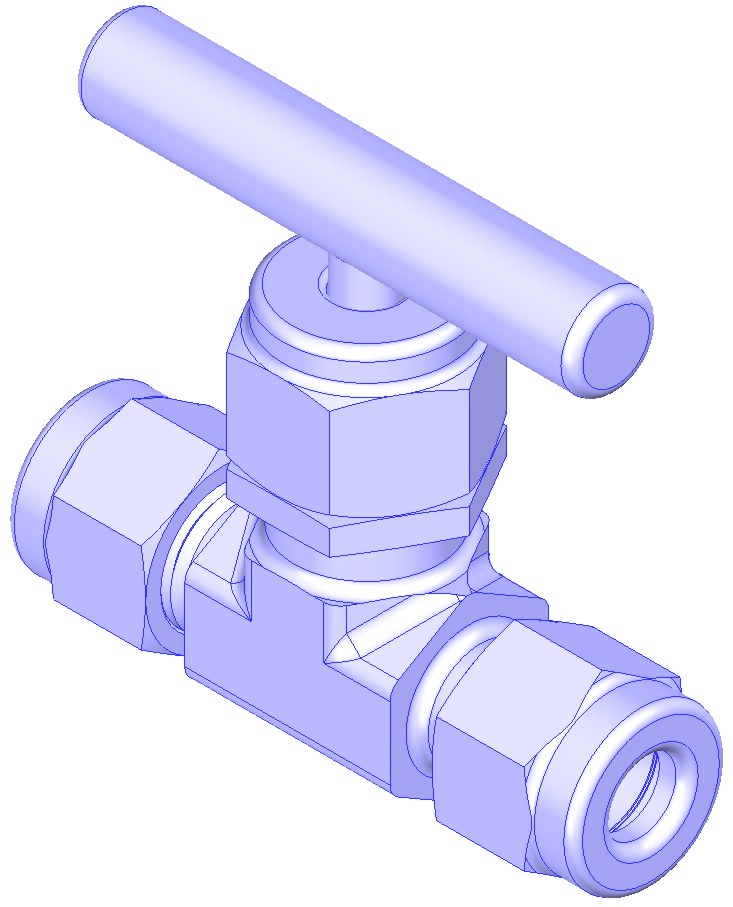

Straight Through Pattern

  • Pressure Rating to 6000 psi or 10 000 psi
  • Temperature ranges -57ºC - 200ºC /  -40ºC - 215ºC / -40ºC - 450ºC
  • Male, Female, Tube Connection, AN, JIC connections available
  • NPT, BSP, BSPG
  • 1/16" 1/8", 1/4", 1/2" available
  • "T" bar handle and Hand wheel
  • Body construction conforms to ASME B31.1, ASME B31.3 and others

       Read More......                                          Download catalog here...

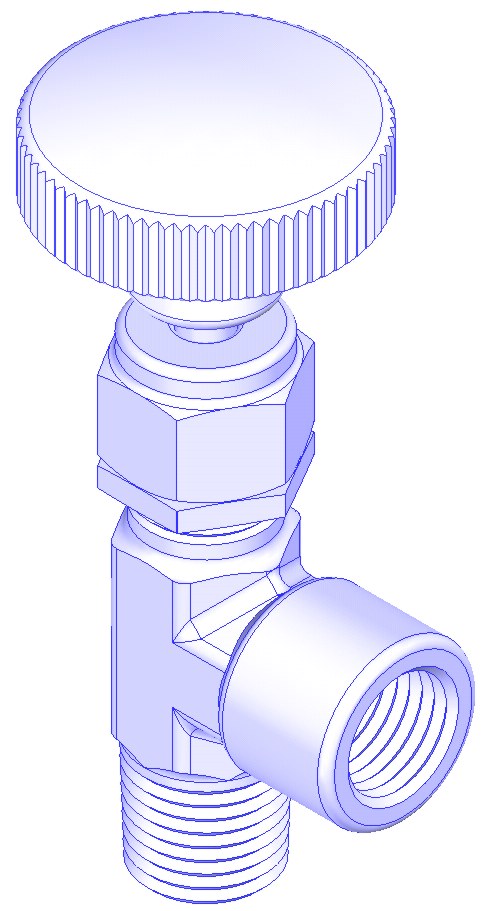

90 Degree Right Angle Pattern

  • Pressure Rating to 6000 psi or 10 000 psi
  • Temperature ranges -57ºC - 200ºC /  -40ºC - 215ºC / -40ºC - 450ºC
  • Male, Female, Tube Connection, AN, JIC connections available
  • NPT, BSP, BSPG
  • 1/16" 1/8", 1/4", 1/2" available
  • "T" bar handle and Hand wheel
  • Body construction comforms to ASME B31.1, ASME B31.3 and others

       Read More......                                          Download catalog here...
