Flanged DBB Ball Valves

Back to All Needle Valves / Hand Valves Main Page...




DBB Process valves allows for greatly simplified installation. Among the many advantages are reduced component count by eliminating conventional multi valve installation. This in turn results in a more compact installation size. Added to this, you benefit from a reduction in leak paths.

These valves can be installed directly onto pressure vessels or piping. They are available in ASME B16.5 and API flange connections, as well as standard threaded connections such as NPT.

The most common design is to have the outlet in 1/2" NPT to allow direct connection of a transmitter, gauge or switch. Alternatively, if you require an inline installation, the valve can be purchased with a flanged outlet to continue your piping installation.






Features

  • Available from 1/2" to 3" NB (DN15 to DN75)
  • Flange Connection in ASME B16.5 class 150 to 2500 or API 10 000
  • Raised Face (RF) or Ring Type Joint (RTJ) Options
  • Full Bore valve design with 10mm / 15mm / 20mm / 25mm
  • Outlet Connection available in Tube Ferrule Connector or NPT Thread
  • Vent Port available as 1/4" NPT (Standard) or 1/2" NPT
  • Temperature/Pressure Ratings designed to meet ASME B16.34 / B16.5
  • Pressure Boundaries are designed to meet ASME VIII Division 1
  • 4:1 Over-Pressure Safety Factor
  • Positive Handle Stop to index the handle correctly with ease
  • Lockable Handle Option available (locks in both open and closed positions)
  • Full Traceablilty back to source
  • 100% Pressure tested
  • 2 gin
  • Manifold marking to a minimum of MSS-SP-25

Flange / Flange



Flange / Thread



Thread / Thread


Options


Decodification



Specifications
Type Isolation Needle Valve with Bleed
Packing PTFE
Graphite
M.C.W.P. Pressure 6000 psi / 10 000 psi
Temperature Range -30°C (-22°F) to 215°C (420°F) PTFE
-30°C (-22°F) to 440°C (824°F) Graphite
-57°C (-70°F) to 215°C (420°F) Arctic


Connection Options
Process Connection Instrument Connection
1/4" NPT 1/4" NPT
1/2" NPT 1/2" NPT
3/4" NPT 3/4" NPT
1/4" BSP(G) 1/4" BSP(G)
1/2" BSP(G) 1/2" BSP(G)
3/4" BSP(G) 3/4" BSP(G)

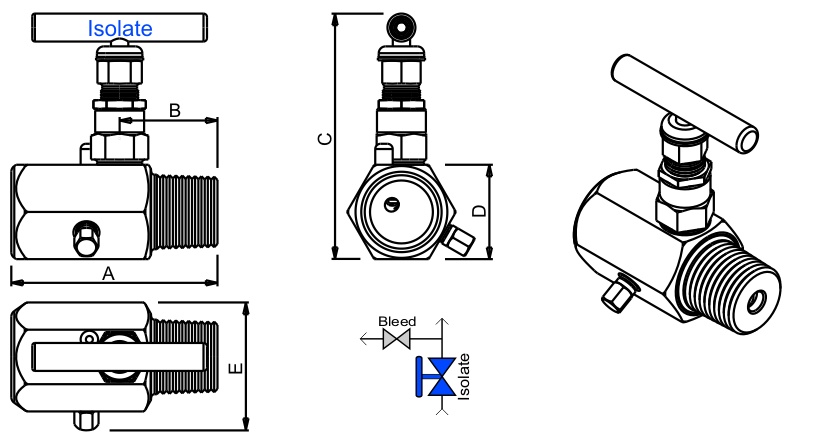

Male - Female
Thread Size A B C D E Weight
1/4 " 53 28 68 22 26 178g
3/8 " 57 29 68 22 26 183g
1/2 " 57 30 71 27 32 236g
3/4 " 64 29 73 32 38  0g
1 " 71 29 78 41 49  0g
G1/4 " 71 29 78 41 49  0g
G3/8 " 71 29 78 41 49  0g
G1/2 " 71 29 78 41 49  0g
Threads are NPT and BSPG, Dimensions in mm
Specifications subject to change without prior notification

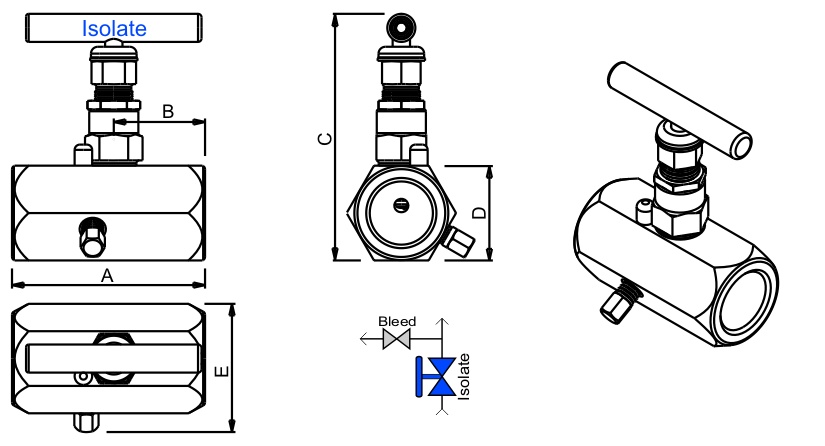

Female - Female
Thread Size A B C D E Weight
1/4 " 53 28 68 22 26 208g
3/8 " 57 29 68 22 26 235g
1/2 " 57 30 71 27 32 245g
3/4 " 64 29 73 32 38  0g
1 " 71 29 78 41 49  0g
G1/4 " 71 29 78 41 49  0g
G3/8 " 71 29 78 41 49  0g
G1/2 " 71 29 78 41 49  0g
Threads are NPT and BSPG, Dimensions in mm
Specifications subject to change without prior notification


Female - Male
Thread Size A B C D E Weight
1/4 " 53 28 68 22 26 178g
3/8 " 57 29 68 22 26 183g
1/2 " 57 30 71 27 32 236g
3/4 " 64 29 73 32 38  0g
1 " 71 29 78 41 49  0g
G1/4 " 71 29 78 41 49  0g
G3/8 " 71 29 78 41 49  0g
G1/2 " 71 29 78 41 49  0g
Threads are NPT and BSPG, Dimensions in mm
Specifications subject to change without prior notification

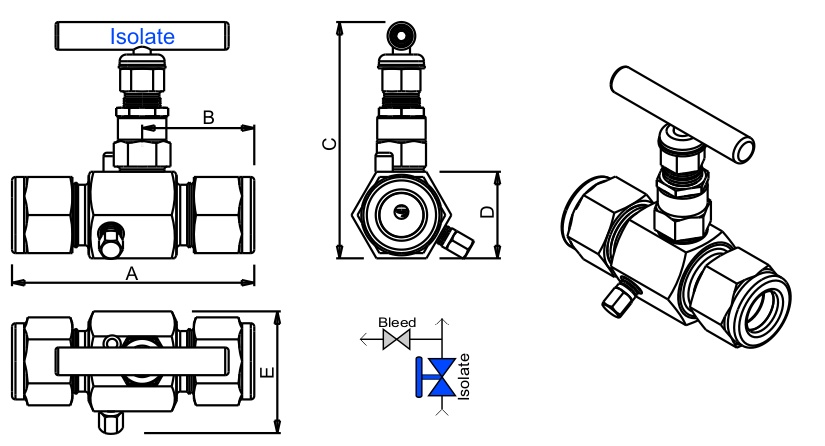

Tube - Tube
Tube Size A B C D E Weight
1/4 " 53 28 68 22 26 165g
3/8 " 57 29 68 22 26 160g
1/2 " 57 30 71 27 32 224g
3/4 " 64 29 73 32 38  0g
1 " 71 29 78 41 49  0g
Threads are NPT and BSPG, Dimensions in mm
Specifications subject to change without prior notification

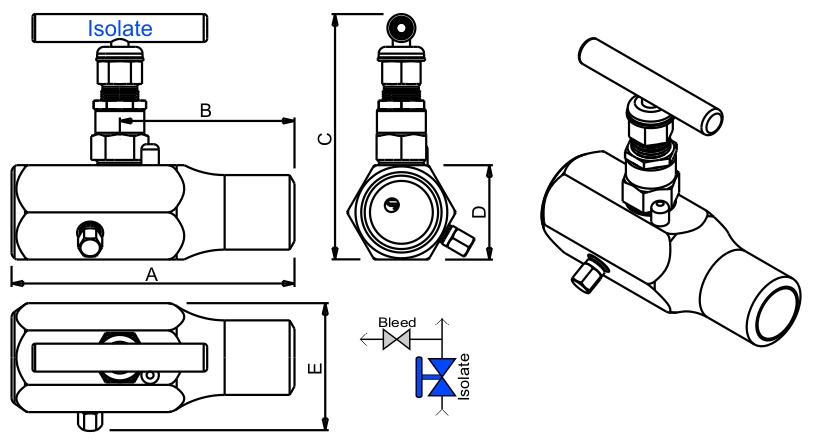

Butt Weld - Female
Weld Size A B C D E Weight
1/4 " 53 28 68 22 26 0g
3/8 " 57 29 68 22 26 0g
1/2 " 57 30 71 27 32 0g
3/4 " 64 29 73 32 38  0g
1 " 71 29 78 41 49  0g
G1/4 " 71 29 78 41 49  0g
G3/8 " 71 29 78 41 49  0g
G1/2 " 71 29 78 41 49  0g
Threads are NPT and BSPG, Dimensions in mm
Specifications subject to change without prior notification




Decodification


Plug Option >>>
To order manifold with plug installed use
-P option in the part number
Bleed Plug Option >>>
To order manifold with bleedplug installed use
-Q option for the part number
2 Bolt Kit Options >>>
2 Bolt manifold to transmitter assembly kit
-ZK option for carbon steel bolts and
-ZH option for 316SS bolts
 Bracket Options >>>
  This is a bracket example


Transmitter Gasket Seals >>>
Gasket seals kits can be ordered
SEALS-24-18-2.75PT for PTFE (teflon)
SEALS-24-18-3.2PG for Graphite (Graphoil)
Certification and Testing >>>
These Manifolds are 100% tested and can be supplied with all relevant traceability documentation and EN10204 3.1 MTR certs.
Read More......
Compression Fittings Connector Kit >>>
To order manifold with compression fittings use
KIT-1234 option in the part number
