L3/S |
Specifications |
|
| Type | 3 Way Direct Mount DP Manifold Pipe to Flange |
| Inlets | Female 1/2" NPT |
| Outlets | Flanged 'O'-Ring Transmitter Hook-Up |
| Packing | PTFE Graphite |
| M.C.W.P. Pressure | 6000 psi / 10000 psi |
| Temperature Range | -30°C (-22°F) to 215°C (420°F) PTFE -30°C (-22°F) to 440°C (824°F) Graphite |
| Weight | 1.33 kg |

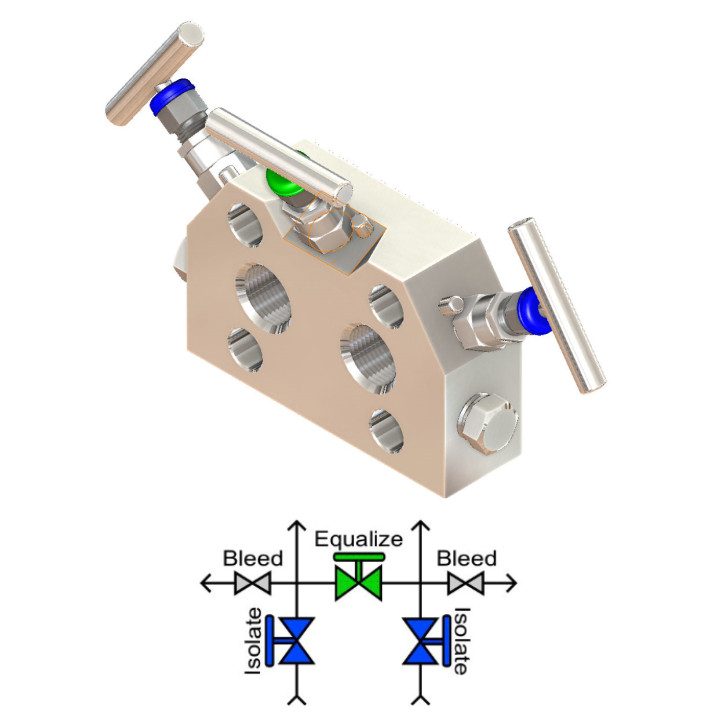

3 Way Direct Mount Manifold With Side Mounted Vent Ports
|
| The L3/S manifold mounts directly to standard differential pressure transmitters. This wide body style allows for wider spacing between the two impulse lines, making installation simpler. This 3 way design includes bleed/test ports for calibration and venting. The manifold is supplied with the transmitter seals as standard, with the bolting kit being included as and option added to the part number. |
