L5/FS |
Specifications |
|
Type | 5 Way Direct Mount DP Manifold Pipe to Flange |
Inlets | Female 1/2" NPT |
Outlets | Flanged "O" Ring Transmitter Hook-Up |
Packing | PTFE Graphite |
M.C.W.P. Pressure | 6000 psi / 10000 psi |
Temperature Range | -30°C (-22°F) to 215°C (420°F) PTFE -30°C (-22°F) to 440°C (824°F) Graphite |
Weight | 1.58 kg |

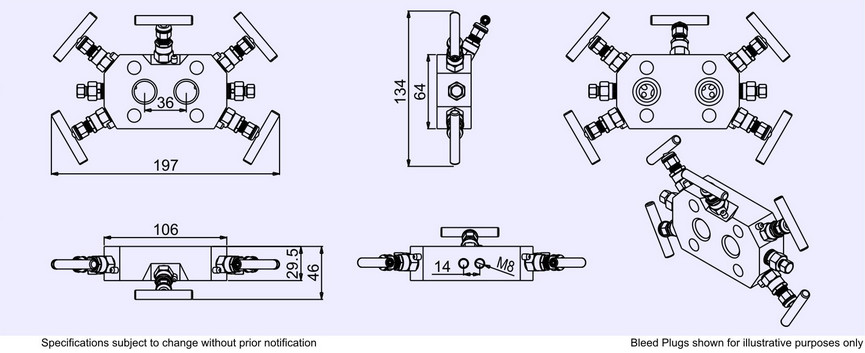

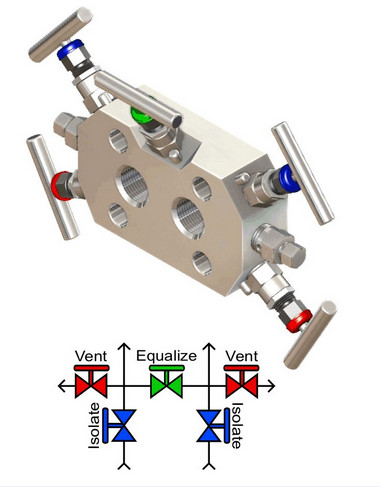

5 Way Direct Mount Manifold
|
The L5/FS manifold mounts directly to standard differential pressure transmitters. This body style allows for a wider spacing between the two impulse lines, making installation simpler. Placement of transmitter and manifold are made easier due to its compact design. The manifold is supplied with the transmitter seals as standard, with the bolting kit being included as and option added to the part number. |
