Type 5 Way Remote Mount Manifold
Pipe to Pipe
Inlets Female 1/2" NPT
Outlets Female 1/2" NPT
Packing PTFE
M.C.W.P. Pressure 6000 psi / 10000 psi
Temperature Range -30°C (-22°F) to 215°C (420°F) PTFE
-30°C (-22°F) to 440°C (824°F) Graphite
Weight 1.58 kg

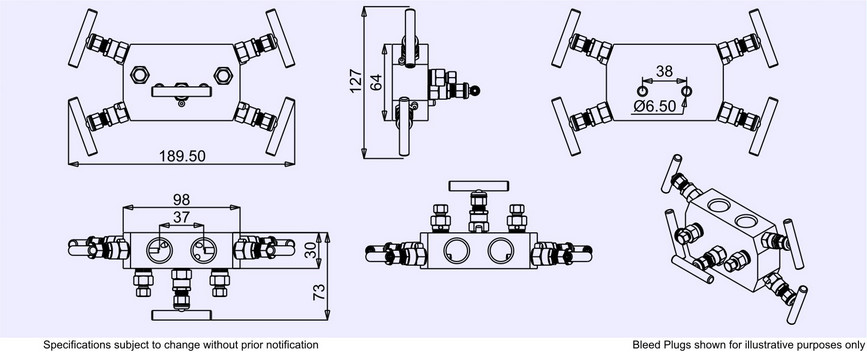

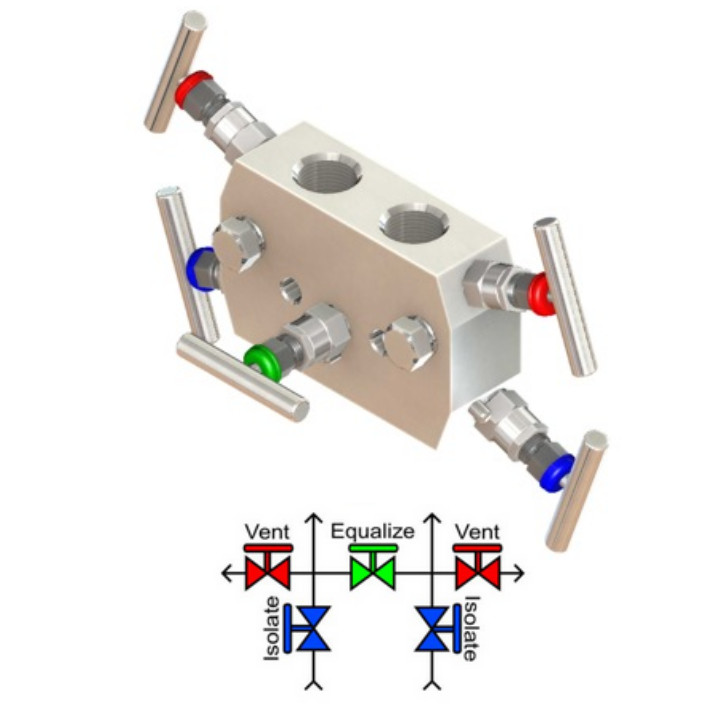

5 Way Remote Mount Manifold with Side Mounted Isolate Taps (Compact Design)

The L5/P manifold mounts remotely from differential pressure transmitters, gauges or switches. It is designed to be the smallest package possible for the space and cost concious. Features narrow process and connection PCD's.


  • Ultra lightweight and compat body
  • Liquid and vapor service
  • Narrow process and instrument connection PCD's
  • Venting on the top face
  • Remote mount and compact allowing flexible system design
  • Full traceability
  • 100% pressure tested
  • Mounting holes for easy installation
  • Available in most exotic materials

Plugs Option >>>
To order manifold with plugs installed use
-P option in the part number
Bleed Plug Option >>>
To order manifold with bleedplugs installed
-Q option in the part number
 Bracket Options >>>
  This is a bracket example

Certification and Testing >>>
These Manifolds are 100% tested and can be supplied with all relevant traceability documentation and EN10204 3.1 MTR certs.
Read More......
4 Compression Fittings Connector Kit >>>
To order manifold with compression fittings use
KIT-1234 option in the part number
