L2/DR


Specifications

Type 2 Way DBB Remote Mount Inline
Pipe to Pipe
Inlets Female 1/2" NPT
Outlets Female 1/2" NPT
Packing PTFE
Graphite
M.C.W.P. Pressure 6000 psi / 10000 psi
Temperature Range -30°C (-22°F) to 215°C (420°F) PTFE -30°C (-22°F) to 440°C (824°F) Graphite
Weight 0.78 kg

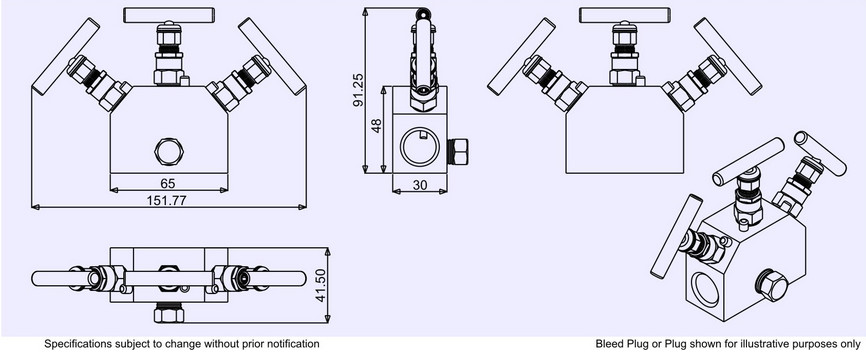

2 Way DBB Remote Mount Inline Manifold

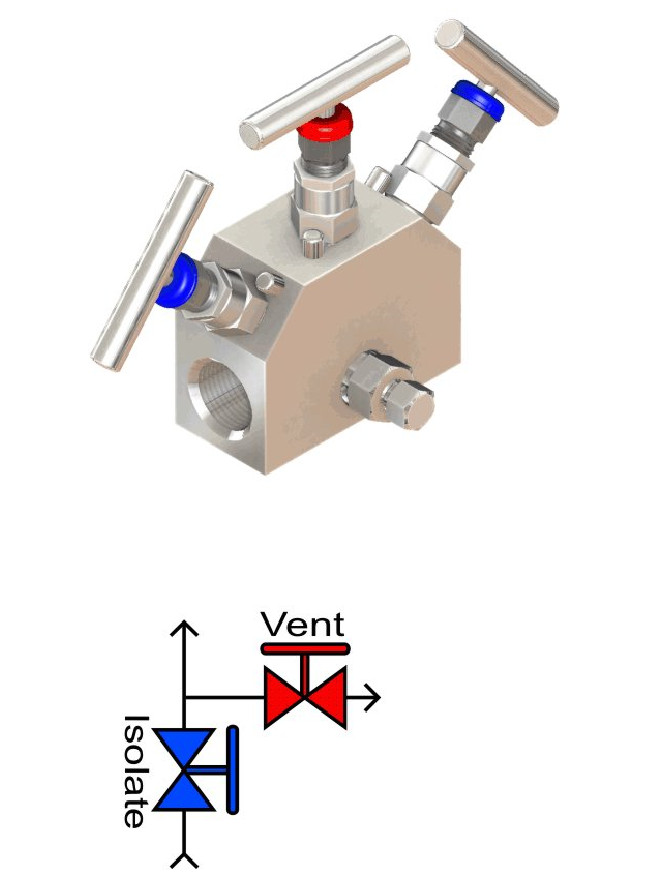

The L2/DR DBB remote mount inline manifold is ideal for limited space and panel installations. The Double Block and Bleed design provides maximum safety by ensuring "Positive Energy Isolation" as it utilizes the industry know Isolate Vent Isolate pattern. It is ideal for limited space and panel installations. There are many cost saving aspects to this manifold such as easy installation and reduced installation time. It also reduces the amount of leak paths in the system.

Features


  • Lightweight
  • Double Block and Bleed Design (DBB)
  • Liquid and vapor service
  • Venting on the front face
  • Reduced cost by eliminating multi valve systems
  • Reduces installation time
  • Reduced leak paths
  • Remote mount and compact allowing flexible system design
  • Full traceability
  • 100% pressure tested
  • Up-stream venting available
  • Versatile mounting options for horizontal and vertical mounts
  • Available in most exotic materials

Plug Option >>>
To order manifold with plug installed use
-P option in the part number

Bleed Plug Option >>>
To order manifold with bleedplug installed use
-Q option for the part number

 Bracket Options >>>
  This is a bracket example


Certification and Testing >>>
These Manifolds are 100% tested and can be supplied with all relevant traceability documentation and EN10204 3.1 MTR certs.
Read More......

2 Compression Fittings Connector Kit >>>
To order manifold with compression fittings use
KIT-1234 option in the part number
