L1/HKL

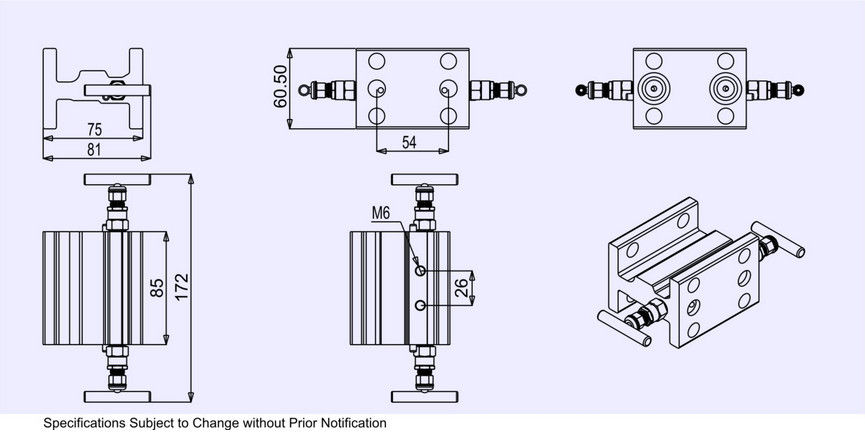

Specifications
Type 1 Way H-Section Manifold
Flange to Flange
Inlets Kidney Flange
Outlets Flanged "O" Ring Transmitter Hook-Up
Packing PTFE
Graphite
M.C.W.P. Pressure 6000 psi / 10000 psi
Temperature Range -30°C (-22°F) to 215°C (420°F) PTFE -30°C (-22°F) to 440°C (824°F) Graphite
Weight 1.55 kg

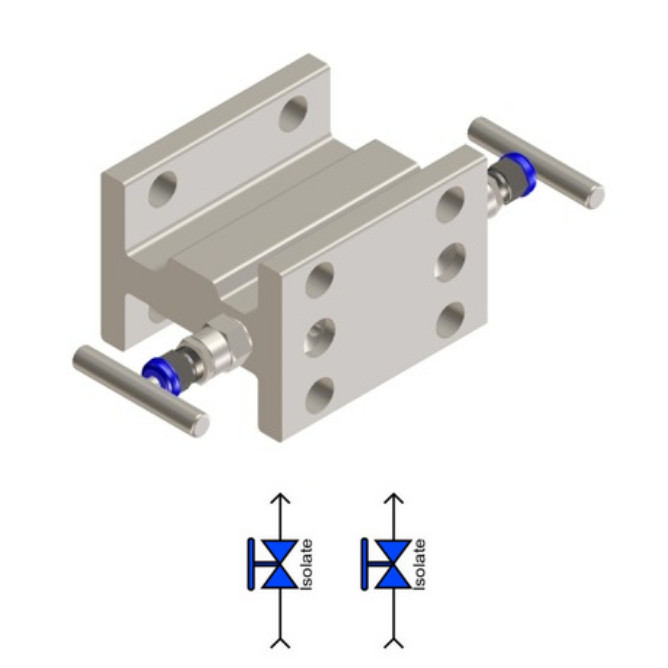

1 Way H-Section Manifold - Liquid Level
The L1/HKL manifold mounts directly to standard pressure transmitters. Designed for liquid level applications with two isolation valves operationg in parallel to shut off either one of the two process lines through the manifold. No equalizer passage run through the manifold. The manifold is supplied with the transmitter seals as standard, with the bolting kit being included as and option added to the part number.

Features


  • Well suited for liquid level applications
  • Compact and light weight
  • Seperate isolation of parallel process lines
  • All taps are full sized tap designs with adjustable gland packings (No mini taps used). This provides all the many safety features related to the tap design
  • No miniature tap handles utilized, minimizing force required to operate the tap
  • No "cheat holes" are used for porting, therefor minimizing leak paths
  • Mounting point location allows easy removal of the transmitter without disconnecting the manifold
  • Un-obstructed installation and removal of transmitter bolts
  • Versatile mounting options for horizontal and vertical mounts
  • 100% pressure tested
