Type 2 Way H-Section Manifold
Flange to Flange
Inlets Kidney Flange
Outlets Flanged "O" Ring Transmitter Hook-Up
Packing PTFE
M.C.W.P. Pressure 6000 psi / 10000 psi
Temperature Range -30°C (-22°F) to 215°C (420°F) PTFE -30°C (-22°F) to 440°C (824°F) Graphite
Weight 0.84 kg

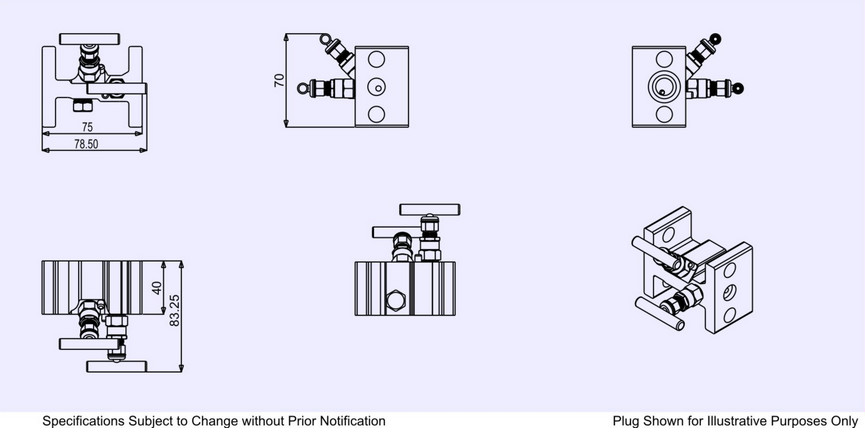

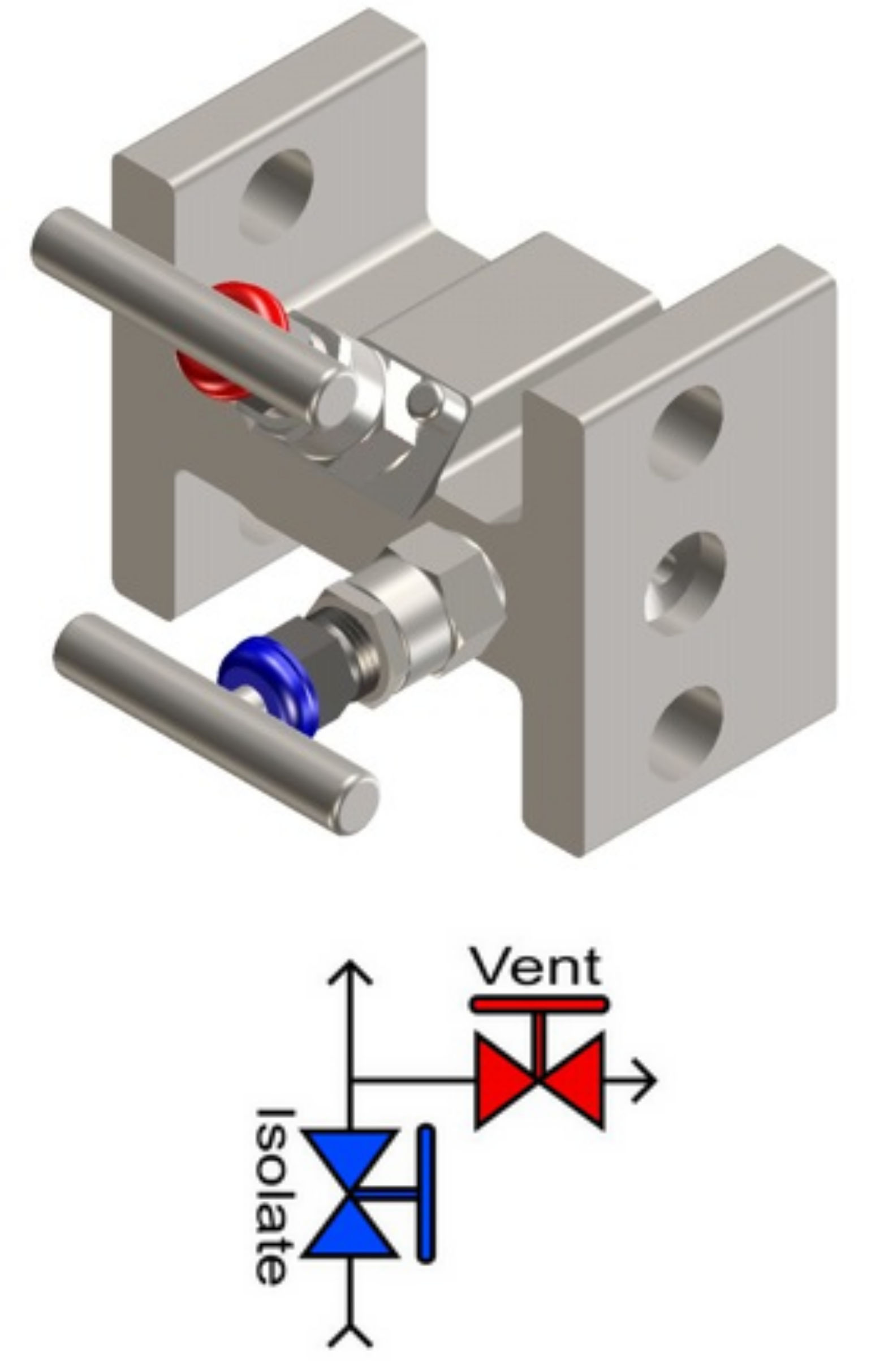

2 Way H-Section Manifold

The L2/HK manifold mounts directly to standard pressure transmitters, allowing isolation and venting of process media for testing and calibration of transmitter with ease. Great cost benefits can be achieved due to the light weight design, such as reducing shipping costs. The efficient design of this manifold reduces the time required for installation. The manifold is upplied with the transmitter seals as standard, with the bolting kit being included as and option added to the part number.


  • Compact and light weight
  • All taps are full sized tap designs with adjustable gland packings (No mini taps used). This provides all the many safety features related to the tap design
  • All taps accessible from one standing position
  • No miniature tap handles utilized, minimizing force required to operate the tap
  • No "cheat holes" are used for porting, therefor minimizing leak paths
  • Mounting point location allows easy removal of the transmitter without disconnecting the manifold
  • Un-obstructed installation and removal of transmitter bolts
  • Versatile mounting options for horizontal and vertical mounts
  • Vent port located side of the manifold for easy access and operation
  • 100% pressure tested

Plug Option >>>
To order manifold with plug installed use
-P option in the part number
Bleed Plug Option >>>
To order manifold with bleedplug installed use
-Q option for the part number
2 Bolt Kit Options >>>
2 Bolt manifold to transmitter assembly kit
-ZK option for carbon steel bolts and
-ZH option for 316SS bolts
 Bracket Options >>>
  This is a bracket example

Transmitter Gasket Seals >>>
Gasket seals kits can be ordered
SEALS-24-18-2.75PT for PTFE (teflon)
SEALS-24-18-3.2PG for Graphite (Graphoil)
Certification and Testing >>>
These Manifolds are 100% tested and can be supplied with all relevant traceability documentation and EN10204 3.1 MTR certs.
Read More......
Compression Fittings Connector Kit >>>
To order manifold with compression fittings use
KIT-1234 option in the part number
