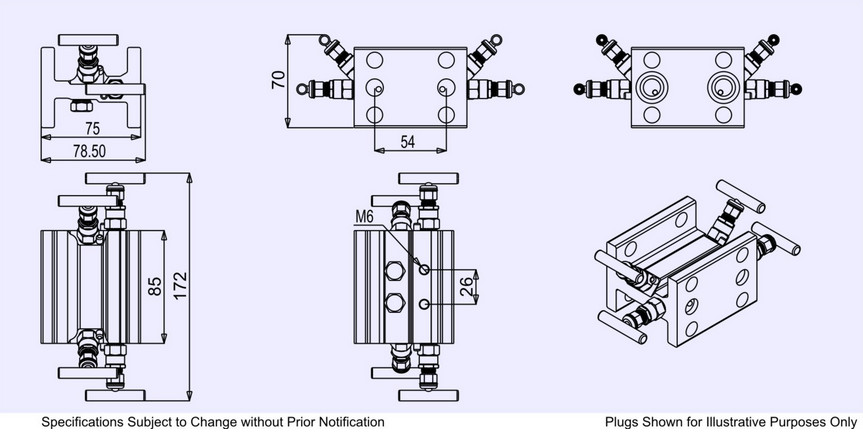

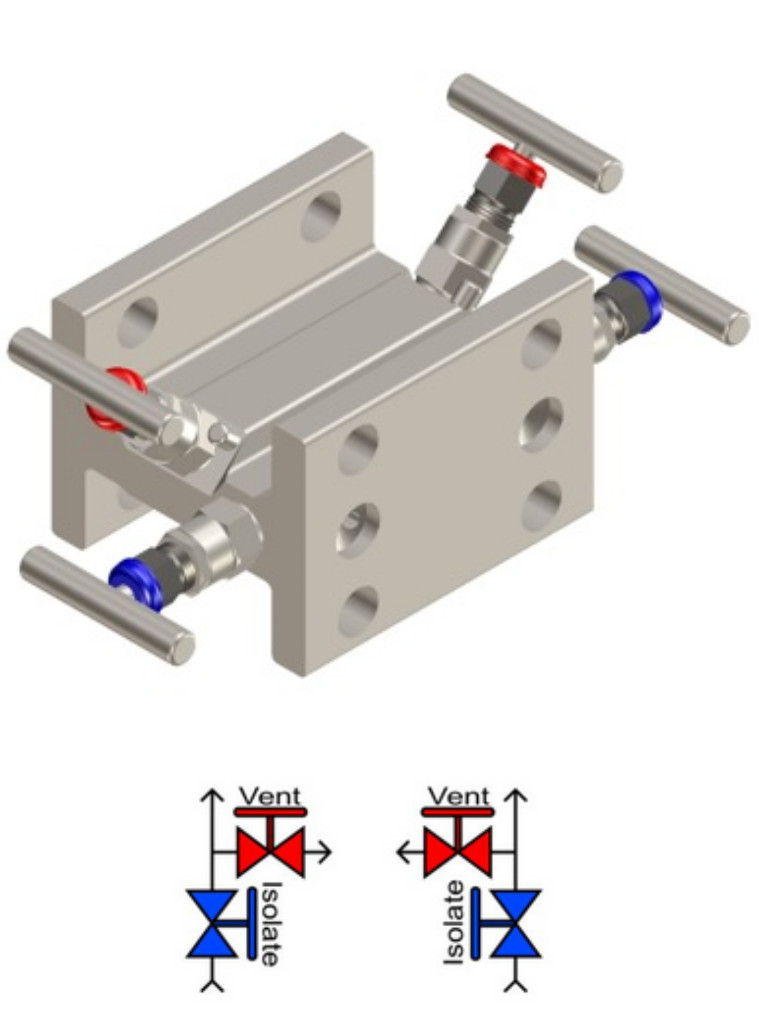

The L2/HKL manifold mounts directly to standard pressure transmitters. Designed for liquid level applications with two isolation valves operationg in parallel to shut off either one of the two process lines through the manifold. No equalizer passage run through the manifold, effectively seperating the two process lines. Venting of process media can be safley done, after isolation of process media, via the vent port. The manifold is supplied with the transmitter seals as standard, with the bolting kit being included as and option added to the part number. |
