L5/TD


Specifications

Type 5 Way Double Equalize T-Section Manifold
Pipe to Flange
Inlets Female 1/2" NPT
Outlets Flanged "O" Ring Transmitter Hook-Up
Packing PTFE
Graphite
M.C.W.P. Pressure 6000 psi / 10000 psi
Temperature Range -30°C (-22°F) to 215°C (420°F) PTFE -30°C (-22°F) to 440°C (824°F) Graphite
Weight 1.55 kg

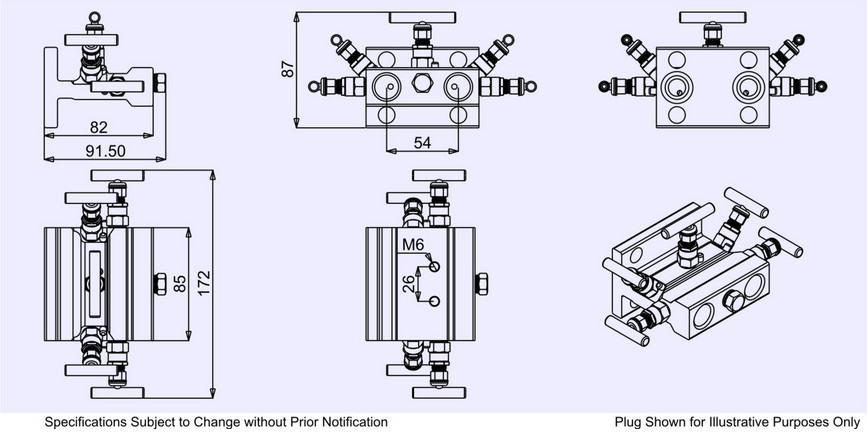

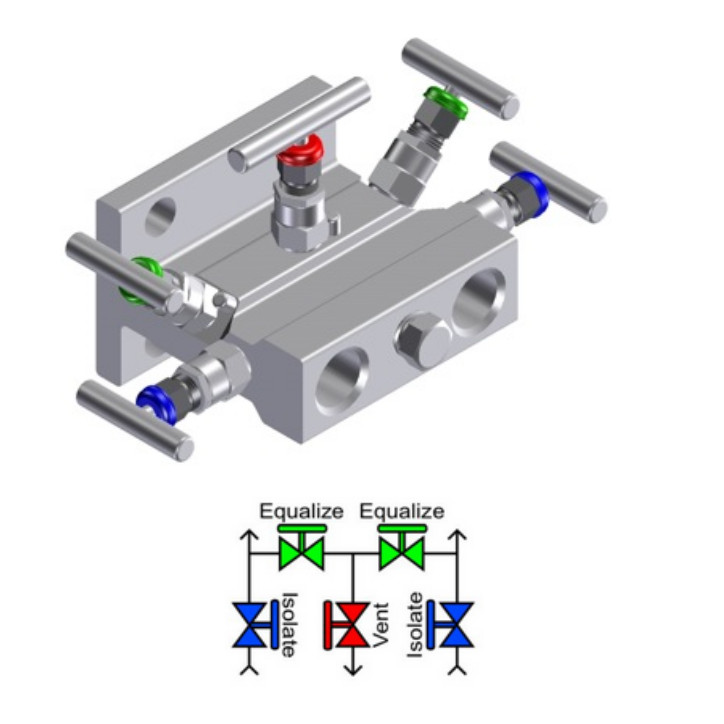

5 Way T-Section Manifold - Double Equalize

The L5/TD manifold mounts directly to standard differential pressure transmitters. Utilizing a double equalize pattern, greater accuracy can be ensured while calibrating. Equalize valves integrities can be established while trnasmitter is in use by venting between the two equalize valves. Great cost benefits can be achieved due to the light weight design, such as reducing shipping costs. The manifold is supplied with the transmitter seals as standard, with the bolting kit being included as and option added to the part number.

Features


  • Well suited for natural gas applications
  • Compact and light weight
  • Double equalize design provides a safer and more accurate operating environment
  • All taps are full sized tap designs with adjustable gland packings (No mini taps used). This provides all the many safety features related to the tap design
  • All taps accessible from one standing position
  • No miniature tap handles utilized, minimizing force required to operate the tap
  • No "cheat holes" are used for porting, therefor minimizing leak paths
  • Mounting point location allows easy removal of the transmitter without disconnecting the manifold
  • Un-obstructed installation and removal of transmitter bolts
  • Versatile mounting options for horizontal and vertical mounts
  • Vent port located on process connection face for easy access and operation
  • 100% pressure tested

Plugs Option >>>
To order manifold with plugs installed use
-P option in the part number

Bleed Plug Option >>>
To order manifold with bleedplugs installed
-Q option in the part number

4 Bolt Kit Options >>>
4 Bolt manifold to transmitter assembly kit
-ZK option for carbon steel bolts and
-ZH option for 316SS bolts

 Bracket Options >>>
  This is a bracket example


Transmitter Gasket Seals >>>
Gasket seals kits can be ordered
SEALS-24-18-2.75PT for PTFE (teflon)
SEALS-24-18-3.2PG for Graphite (Graphoil)

Certification and Testing >>>
These Manifolds are 100% tested and can be supplied with all relevant traceability documentation and EN10204 3.1 MTR certs.
Read More......

2 Compression Fittings Connector Kit >>>
To order manifold with compression fittings use
KIT-1234 option in the part number
