Sustech Gauge Adapters

  Gauge adapters allow the user easy installation of any gauge to any process thread with ease. They available in many different thread combinations and sizes. This makes it possible to thread size jumps,gender swapping as well as thread standards swapping.

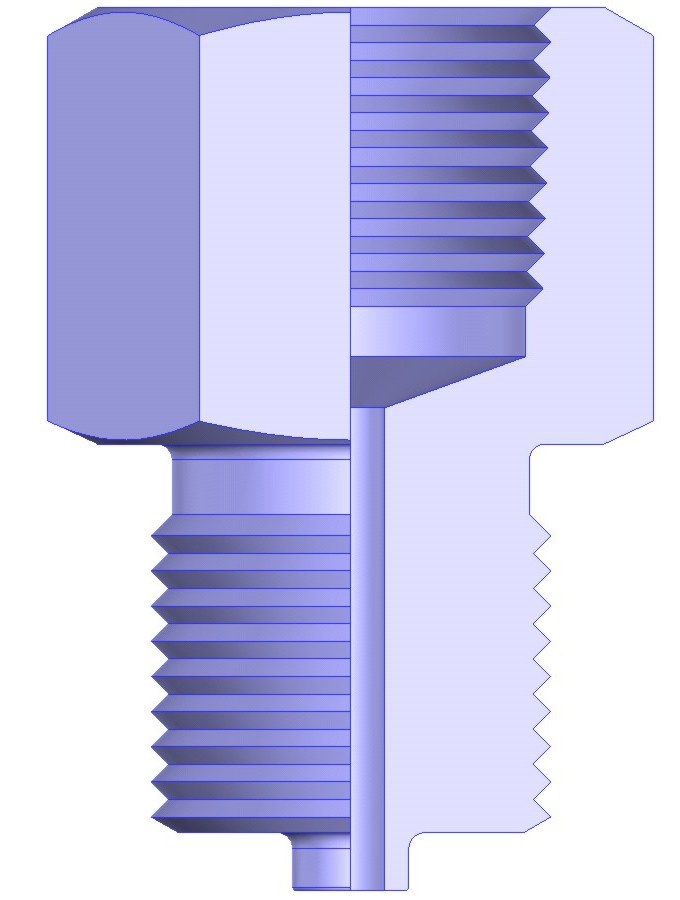

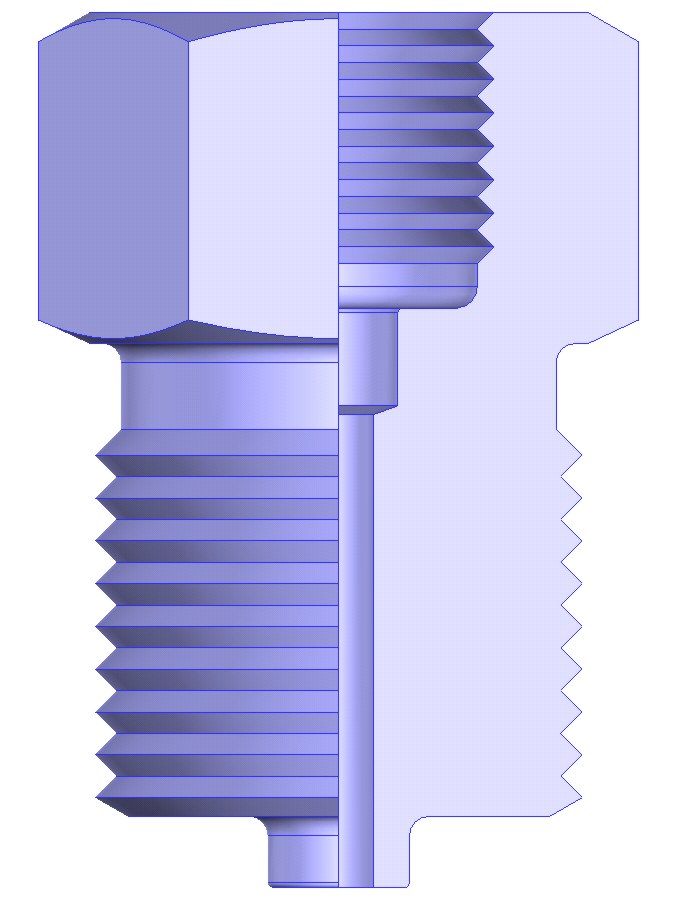

1/2" to 1/4" Reducer

NPT to BSP Converter

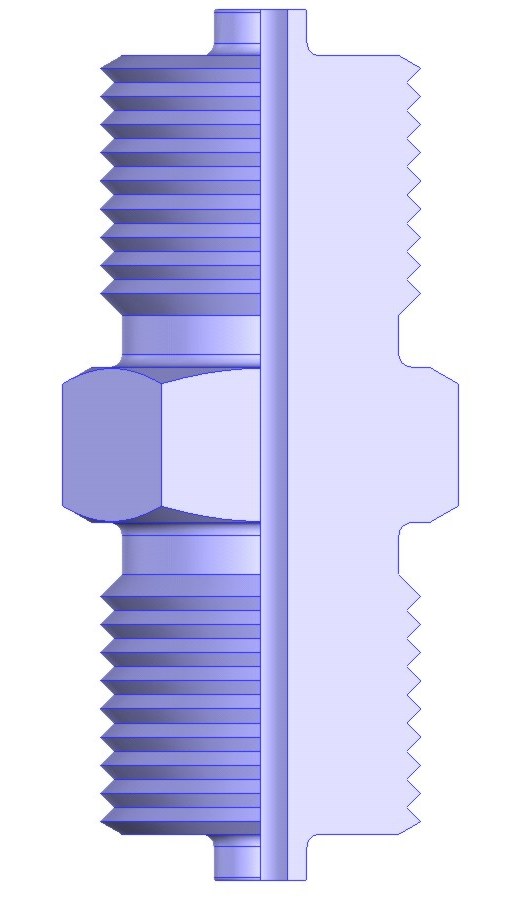

Male to Male

Pressure Rating 400 bar / 6000psi
Temperature Rating -50 deg C to 250 deg C
Media Type Various







Dimensions (mm)
Thread Size Length Hex Height
1/4" 60mm 19 Hex 111
1/2" 68mm 27 Hex 222


  • Shut-off and throttle device with plug, for mounting between pressure gauge and upstream cooling sector, e.g. siphon
  • Three operating positions can be set with the cock/plug: venting position (pressure gauge is depressurised and vented), measuring or through position (pressure gauge is pressurised), exhaust position (the measuring medium is released to outdoors)
  • Females G1/4B or G1/2B fixed on both sides
  • Suitable for gases, vapours and fluids from -10°C to +50°C
  • Suitable for brass compatible measuring media
  • Maximum operating pressure 16 bar
