Isolation Needle Valves / Hand Valves - L1/A

Back to All Needle Valves / Hand Valves Main Page...



Hand valves are a plug valve design, available in a variety of different shapes, sizes and primarily used for isolation of pressure gauges, switches and pressure transmitters. These high quality items can be purchased with various inlet and outlet connections.

Needle Valves are very similar in design, except they are capable of metering flow rates very accurately. This is achieved with large movements being made to the handle for small changes in flow.

Male / Female


Female / Male


Welded Inlet



Options

Female / Female

Tube / Tube


Decodification

Features

  • Superior Valvehead Technology
  • Long Service Life
  • Metal to metal seat for positive bubble tight shutoff
  • Bonnet to body seal below bonnet threads isolating them from the process media
  • Space saving compact design
  • Accurate flow control at low flow rates for sustained periods for needle valve versions
  • Various Cv Ratings available
  • Many connection options available. This allows the user great flexibility and reduces amount of external components needed. Possible connections are male thread, female thread, tube end, butt weld and socket weld
  • Tube end design eliminates the requirement for additional compression fittings, thus reducing costs, installation time and potential leak paths
  • Full Traceablilty back to source
  • 100% Pressure tested with nitrogen gas
  • 2 Times over-pressure safety margin
  • Manifold marking to a minimum of MSS-SP-25

Specifications
Type Isolation Needle/Hand Valve
Packing PTFE
Graphite
M.C.W.P. Pressure 6000 psi / 10 000 psi
Temperature Range -30°C (-22°F) to 215°C (420°F) PTFE
-30°C (-22°F) to 440°C (824°F) Graphite
-57°C (-70°F) to 215°C (420°F) Arctic


Connection Options
Process Connection Instrument Connection
1/4" NPT 1/4" NPT
1/2" NPT 1/2" NPT
3/4" NPT 3/4" NPT
1/4" BSP(G) 1/4" BSP(G)
1/2" BSP(G) 1/2" BSP(G)
3/4" BSP(G) 3/4" BSP(G)

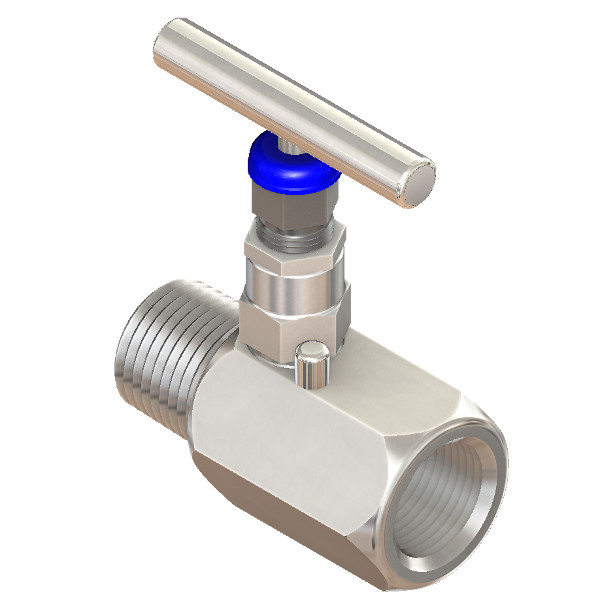

Male - Female
Thread Size A B C D E Weight
1/4 " 53 28 68 22 26 178g
3/8 " 57 29 68 22 26 183g
1/2 " 57 30 71 27 32 236g
3/4 " 64 33 76 32 38  355g
1 " 71 35 85 41 49  610g
G1/4 " 62 32 68 22 26 189g
G3/8 " 66 33 68 22 26 200g
G1/2 " 66 33 71 27 32 250g
Threads are NPT and BSPG, Dimensions in mm
Specifications subject to change without prior notification

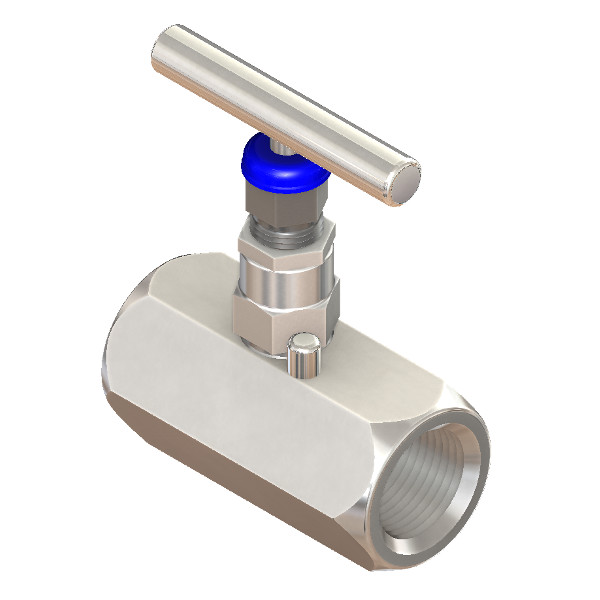

Female - Female
Thread Size A B C D E Weight
1/4 " 53 28 68 22 26 208g
3/8 " 57 29 68 22 26 235g
1/2 " 57 30 71 27 32 245g
3/4 " 64 29 76 32 38  380g
1 " 71 29 85 41 49  680g
G1/4 " 62 32 68 22 26 221g
G3/8 " 66 33 68 22 26 236g
G1/2 " 66 33 71 27 32 260g
Threads are NPT and BSPG, Dimensions in mm
Specifications subject to change without prior notification


Female - Male
Thread Size A B C D E Weight
1/4 " 53 28 68 22 26 178g
3/8 " 57 29 68 22 26 183g
1/2 " 57 30 71 27 32 236g
3/4 " 64 29 73 32 38  355g
1 " 71 29 78 41 49  610g
G1/4 " 62 32 68 22 26 189g
G3/8 " 62 33 68 22 26 200g
G1/2 " 66 33 71 27 32 250g
Threads are NPT and BSPG, Dimensions in mm
Specifications subject to change without prior notification

Tube - Tube
Tube Size A B C D E Weight
1/4 " 53 28 68 22 26 165g
3/8 " 57 29 68 22 26 160g
1/2 " 57 30 71 27 32 224g
3/4 " 64 29 76 32 38  350g
1 " 71 29 85 41 49  600g
Threads are NPT and BSPG, Dimensions in mm
Specifications subject to change without prior notification

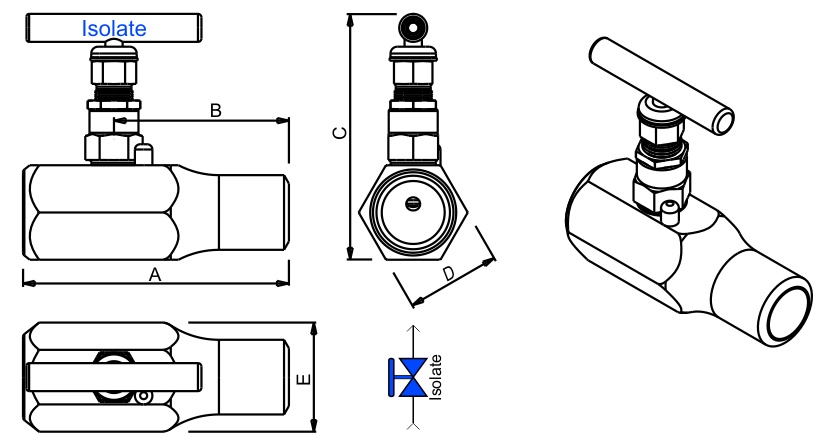

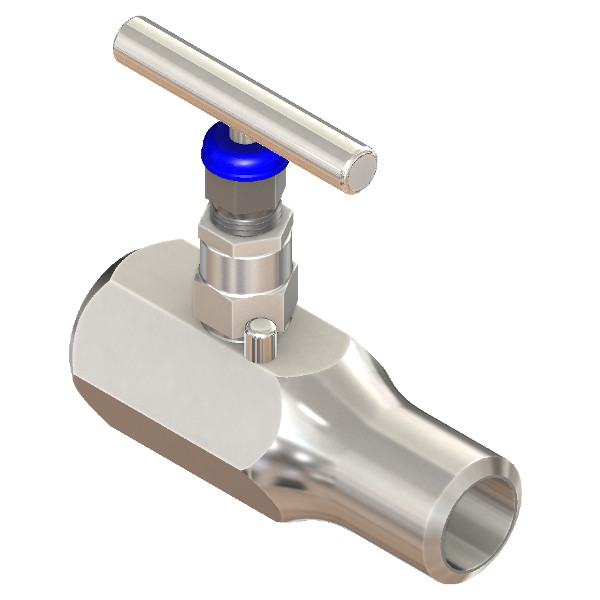

Butt Weld - Female
Weld Size A B C D E Weight
1/4 " 74 50 68 22 26 245g
3/8 " 74 50 68 22 26 260g
1/2 " 76 50 71 27 32 305g
3/4 " 78 50 76 32 38  450g
1 " 80 50 85 41 49  750g
Threads are NPT and BSPG, Dimensions in mm
Specifications subject to change without prior notification
