| L2/DW |
Specifications |
|
| Type | 2 Way Direct Mount Wide Body Manifold Pipe to Flange |
| Inlets | Female 1/2" NPT |
| Outlets | Flanged 'O'-Ring Transmitter Hook-Up |
| Packing | PTFE Graphite |
| M.C.W.P. Pressure | 6000 psi / 10000 psi |
| Temperature Range | -30°C (-22°F) to 215°C (420°F) PTFE -30°C (-22°F) to 440°C (824°F) Graphite |
| Weight | 1.55 kg |

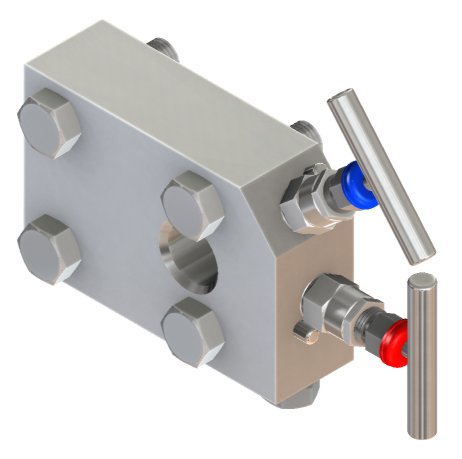

2 Way Direct Mount Wide Body Manifold |
| The L2/D manifold mounts directly to pressure transmitters. It is a small package making it attractive to the space and cost conscious. The angled vent tap design offers sufficient space to be able to operate the valves easily. The vent port is placed on the back face, pointing away from the user. This can be safer when hazardous media is being vented. The manifold is supplied with the transmitter seals as standard, with the bolting kit being included as and option added to the part number. |
