L2/FS

Specifications

Type 2 Way Direct Mount Manifold
Pipe to Flange
Inlets Female 1/2" NPT
Outlets Flanged "O" Ring Transmitter Hook-Up
Packing PTFE
Graphite
M.C.W.P. Pressure 6000 psi / 10000 psi
Temperature Range -30°C (-22°F) to 215°C (420°F) PTFE
-30°C (-22°F) to 440°C (824°F) Graphite
Weight 0.73 kg

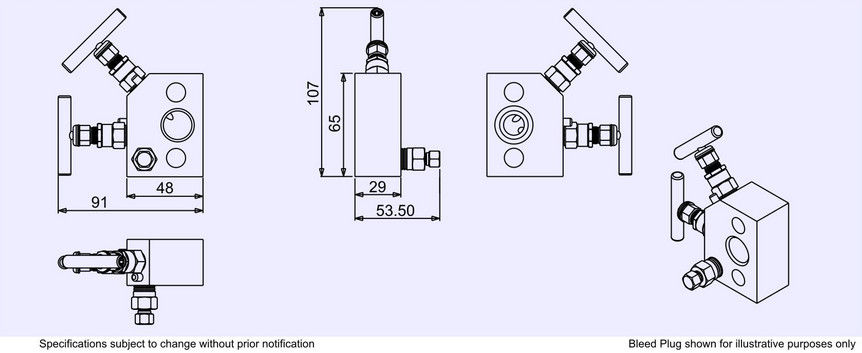

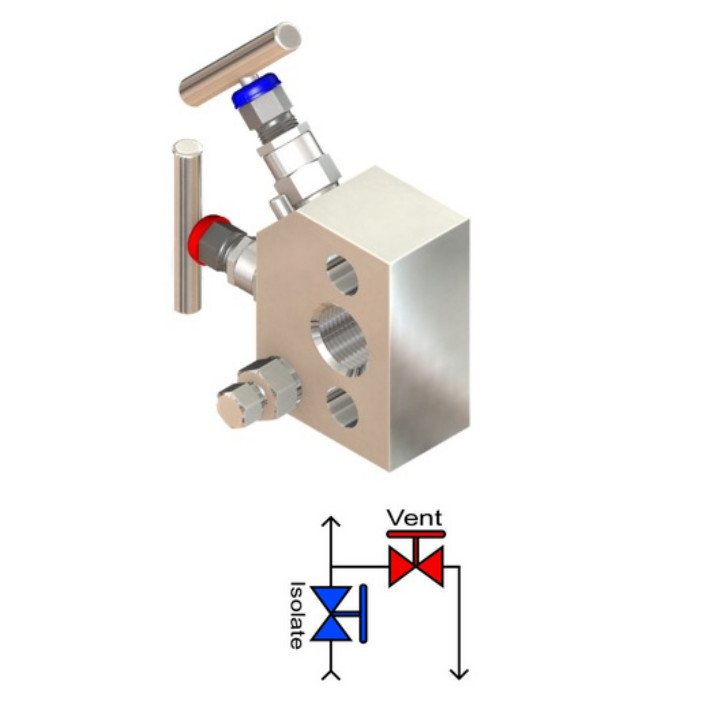

2 Way Direct Mount Manifold

The L2/FS manifold mounts directly to pressure transmitters. It is a small package making it attractive to the space and cost conscious. The angled vent tap design offers sufficient space to be able to operate the valves easily. Placement of the vent port is on the process face allowing easy piping away from vented media. This can be safer when hazardous media is being vented. The manifold is supplied with the transmitter seals as standard, with the bolting kit being included as and option added to the part number.

Features


  • Compact body
  • Both tap handles can be operated from one side
  • Reversable design where transmitters where the pressue connection is situated on the right hand side
  • Liquid and vapor service
  • Allows isolation and removal of transmitter as well as calibration
  • Full traceability
  • 100% pressure tested
  • Up-stream venting available
  • Various bolting kits available
  • Versatile mounting options for horizontal and vertical mounts
  • Available in most exotic materials

Plug Option >>>
To order manifold with plug installed use
-P option in the part number

Bleed Plug Option >>>
To order manifold with bleedplug installed use
-Q option for the part number

2 Bolt Kit Options >>>
2 Bolt manifold to transmitter assembly kit
-ZK option for carbon steel bolts and
-ZH option for 316SS bolts

 Bracket Options >>>
  This is a bracket example


Transmitter Gasket Seals >>>
Gasket seals kits can be ordered
SEALS-24-18-2.75PT for PTFE (teflon)
SEALS-24-18-3.2PG for Graphite (Graphoil)

Certification and Testing >>>
These Manifolds are 100% tested and can be supplied with all relevant traceability documentation and EN10204 3.1 MTR certs.
Read More......

Compression Fittings Connector Kit >>>
To order manifold with compression fittings use
KIT-1234 option in the part number
